PLI Lecture 1
Introduction to PLI and to 3516ICT

* Why study PLI?
  - Frequent need to implement small PLs
  - (Occasional need to implement large PLs)
  - Helps understand how to design PLs (and computers)
  - Helps understand how to use PLs (and PLIs)
  - Excellent case study in SE

* PLI history:
  - First (Fortran) compiler, ca. 1955
  - First Lisp interpreter, ca. 1960
  - First C compiler, ca. 1970
  - First popular parser generators, yacc, ca. 1975
  - First popular pipelined target machines, ca 1990
  - First IDEs, Borland, VB, VC++, ca 1990, 1995
  - First complete compiler generators, Eli, ca. 2000
  - Recent progress most active in code generation
    for increasingly complex target machines

* How are PLs implemented?
  - Interpretation: "Direct" execution of source language
    (I diagrams)
  - Compilation: Translation of source language to
    target languages (T diagrams)

* Source languages
  - Compilation techniques are very different
    for procedural, OO, functional and logic
    languages
  - We shall focus on procedural and OO languages

* Target languages
  - Real: I86, PowerPC, Sparc, Cell, ...
  - Virtual: C, JVM, .NET CLR, MMIX, TM, ...

* Traditional Lisp (Scheme) metacircular interpreters
  - Proposed ca. 1958 by John McCarthy at MIT
  - Current realisations: Common Lisp, Scheme
  - See H. Abelson and G.J. Sussman, Structure and Interpretation
    of Computer Programs, Second Edition, MIT Press, 1996.
  - See Section 4.1: The Metacircular Evaluator
  - Example Scheme function definitions
  - Metacircular evaluator structure

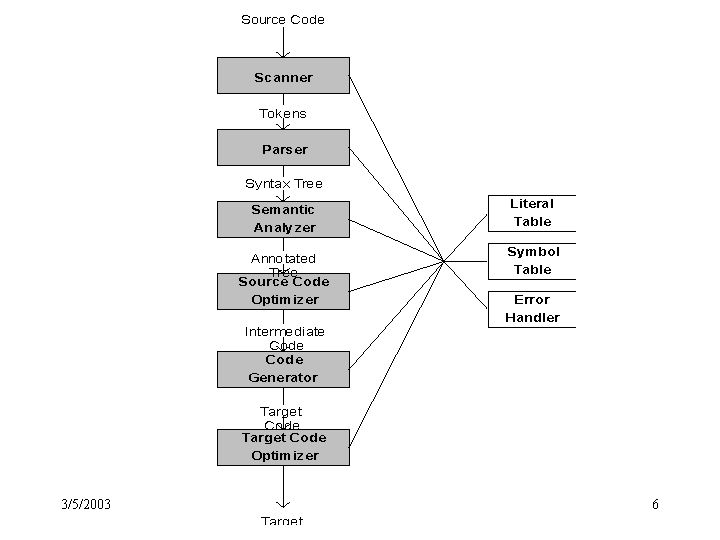

* Generic compiler architecture
  - Preprocessing
  - Analysis
    . Lexical analysis (scanning)
    . Syntactic analysis (parsing)
    . Semantic analysis
      + Name identification
      + Type identification
  - Synthesis
    . Semantic analysis (target attribution)
    . Code generation (intermediate code, target code)
    . Optimisation
  - Module interfaces are well defined
  - Modules are _not_ executed sequentially
    . E.g., lexical analysis and parsing are coroutines,
      optimisation is done before _and_ after code generation
  - See control flow

* Intermediate representations (much variation)
  - Source program
    . E.g., "a[index] = 14+2 // an assignment"
  - Token sequence
    . E.g., "a" "[" "index" "]" "=" "14" "+" "2"

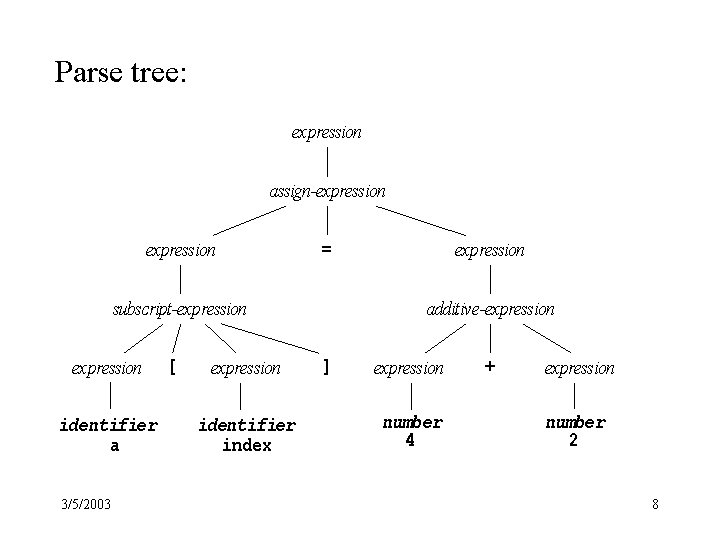

  - Parse trees
    . See tree 1 and tree 2

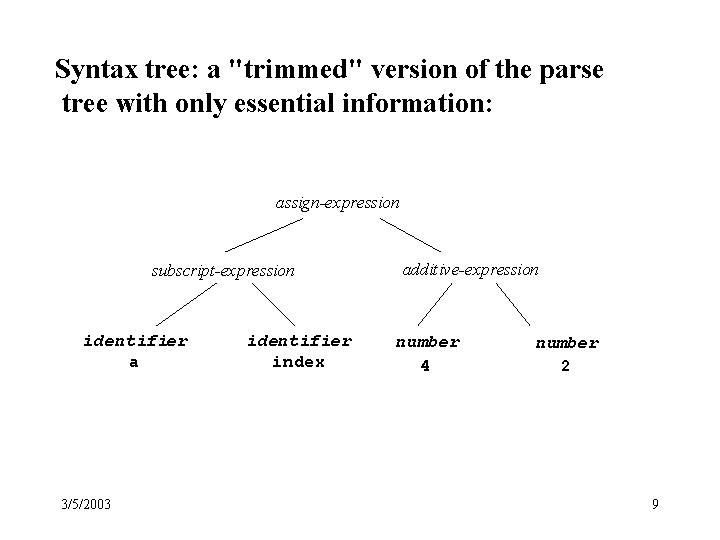

  - Structure trees
    . See tree 3
  - Intermediate code program
    . See later lecture
  - Assembly language program
    . MOV R0, index
    . SHL R0
    . MOV &a(r0), 6
  - Machine language program
  - (Finally, linking and loading is required.)

* Global data structures
  - Literal (constant) table
  - Symbol (name) table

* Other issues:
  . Error reporting and recovery
  . Software (product) quality issues
  . Optimisation:
    - Speed of compilation vs speed of generated code
    - Space requirements

* Running example
  - The Tiny language
    . Simple procedural language
    . No floats, arrays, procedures
    . Example:

	{ Sample Tiny program - computes factorial }
	read x; { input an integer x }
	if x > 0 then
	   fact := 1;
	   repeat
	      fact :- fact * x;
	      x := x - 1
	   until x = 0;
	   write fact { output factorial of x }

  - The tiny compiler
    . Implemented in C - review C!
    . Files:
	  globals.h		main.c
	  util.h		util.c
	  scan.h		scan.c
	  parse.h		parse.c
	  symtab.h		symtab.c
	  analyze.h		analyze.c
	  code.h		code.c
	  cgen.h		cgen.c
    . main.c:
	  syntaxTree= parse();
	  buildSymtab(syntaxTree);
	  typeCheck(syntaxTree);
	  codeGen(syntaxTree,codefile);

  - The TM machine (sic)
    . Very simple register machine
    . Simulator available
    . Important exercise:
      Hand compile the above Tiny program into an
      equivalent TM assembly language program.

  - Specifications of Tiny and TM are available
    on the Web site.

* Second running example
  - The Scheme language
    . Modern dialect of Lisp, a simple, expressive programming language
      that encourages a functional programming style.
    . Available on dwarf (guile) and PCs (PLT Scheme).
    . Learn Scheme!

  - A Scheme interpreter in Scheme
    . Avoids scanning and parsing and some data representation issues
    . Focuses on implementation of control structures

* About 3516ICT
